Master 325Ti
TUBING

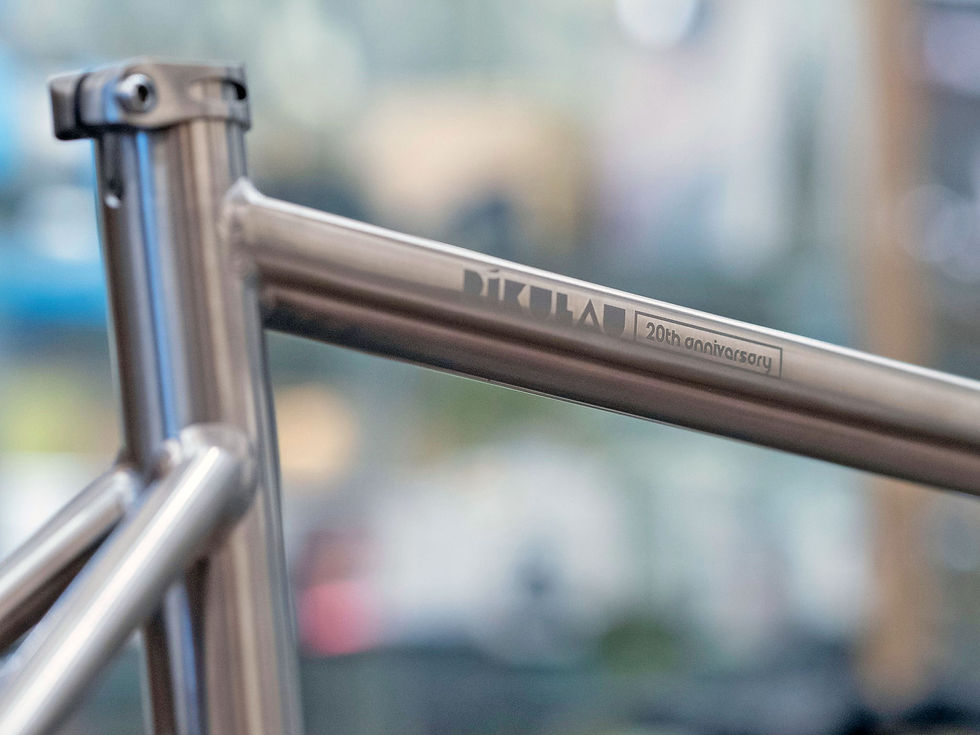

Rikulau 所用的每支3Al-2.5V 鈦合金管都經過抽管、成形、精密切割以及熱處理應力釋放。世界級的加工品質才得以讓雲豹的鈦合金車架與眾不同。


Every 3Al-2.5V titanium tube Rikulau uses is butted, shaped, precision cut,
and then, heat treated to release stress to ensure a perfect frame quality. The combined processes make Rikulau frames different.

Features

Master 325Ti碟剎公路車是雲豹最前衛的產品,除了是雲豹最高階的碟剎版公路車之外,前三角管材採用六角形液壓成型管,而且變速以及剎車線可走管材內部。

Master 325 Ti disc is the most advanced, technologically and conceptually, among all Rikulau products.  It is the top end road disc model. The main triangle is built with pneumatic hydro-formed hexagonal tubes, and inner tubing of shifter/brake housings is standard.

geometry

※ Note: All measurements in millimeter (mm) except angle (degrees) and weight (grams)

Specs:

  1. Integrated head tube for 1 1/4” - 1 1/8” tapered fork steerer

  2. Tubing: Rikulau Hydro-formed Seamless 3Al-2.5V Butted Titanium Tubeset

    • Top tube: 31.8 mm x 1.0/0.75/1.0 mm

    • Seat tube: 34.9 mm x 1.6/1.1/0.8/0.95 mm

    •  Down tube: 44 mm x 0.9/0.7/1.1 mm

    •  Seat stay: 16 x 0.9 mm

    • Chain stay: 25.4 x 0.9 mm

  3. 370 mm fork length; 43 mm rake

  4. 27.2 mm seat post

​​

specs

※ Note: Rikulau reserves the right to replace components with those of equal or higher value.
